Good Performance Non Silicone Thermal Gap Pad For Automotive Electronics And New Energy Vehicle Heat Dissipation
Company Profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Products description
The Z-Paster®100 6060-11series is a siloxane-free thermally conductive interface material applied to fll the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effectively enhances the efficiency and life-time of the heat-generating electronic components.
Features
> High thermal conductivity
> Silicone-free
> Available in different thickness options
> High compliance adapts to various pressure application environments
Application
> Battery packs for electric vehicles
> Cooling components to the chassis of frame
> Car Battery & Power Supply
> Charging Pile
> Silicone-sensitive applications
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> CPU
> Display card
> Mainboard/mother board
> Heat dissipation structure for radiators
> Telecommunication equipment
> Automotive electronics
| Typical Properties of Z-Paster100 6060-11 Series |
| Property | Value | Test method |
| Color | Dark Gray | Visual |
| Construction | Non-Silicone resin | ***** |
| Thermal Conductivity | 6.0 W/mK | ASTM D5470 |
| 6.0 W/mK | ISO 22007 |
| Hardness | 60 Shore 00 | ASTM 2240 |
| Density | 3.3g/cm³ | ASTM D297 |
| Thickness range(inch/mm) | 0.040"-0.200"/1.00~5.00 | ASTM D374 |
| Breakdown Voltage (V/mm) | ≥5500 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 9.0 MHz | ASTM D150 |
| Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 |
| Recommended Operating Temperature ("C) | – 45 ~ 125 ℃ | ***** |
| Flame Rating | V-0 | UL94 (E331100) |
Product Specifications
Standard Thickness: 0.040" (1.00 mm)～0.200" (5.00 mm) with increments of 0.010 (0.25 mm).
Standard Size: 16"×16" (406 mm×406 mm).
The Z-paster® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Product Tags:
|
|

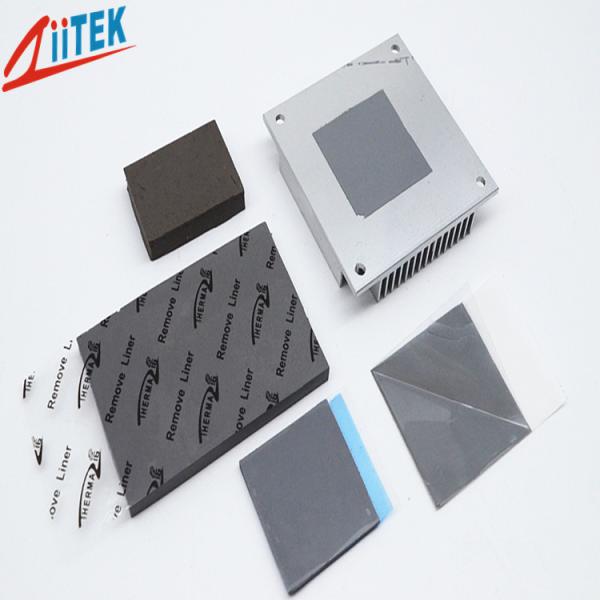

Good Performance Non Silicone Thermal Gap Pad For Automotive Electronics And New Energy Vehicle Heat Dissipation Images
|
